Outdoor Lithium Batteries

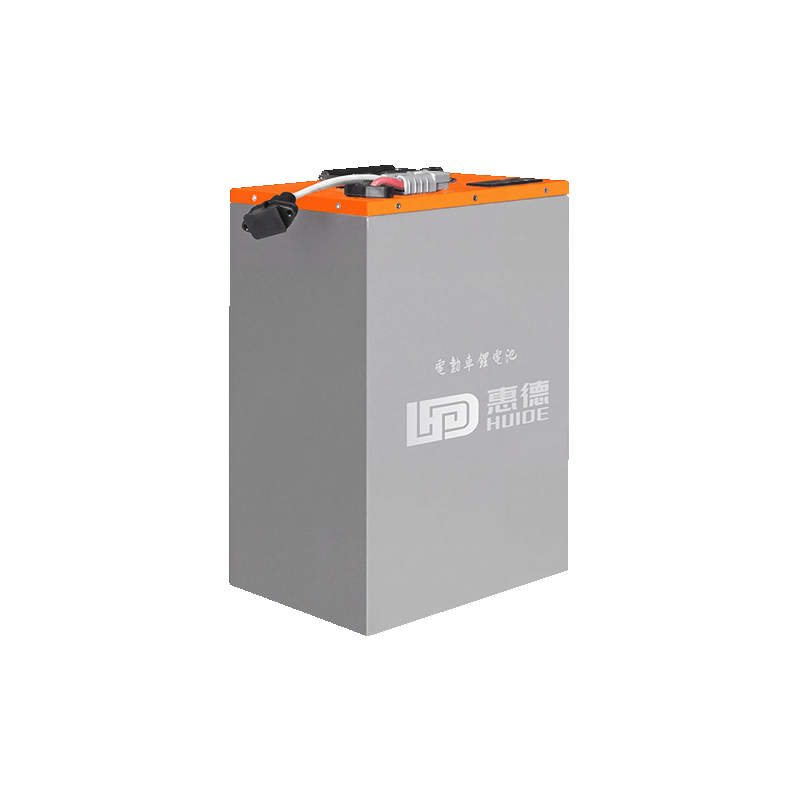

Electric Two-wheeler Lithium Battery (72V60Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

High-power wiring terminals, large current carrying capacity, strong continuous discharge capacity;

Sheet metal sprayed plastic housing, firm and pressure-resistant, dust-proof and rust-proof;

Reserved communication interface, compatible with electric motorcycle controller;

Product Certification

Product Specifications

Product No.
Hd-DD-72-003
Battery Specification
26700, 3.2V / 23S12P / 72V60Ah
Product Dimension
260mm × 180mm × 420mm
Battery Weight
Approx. 35kg
Nominal Voltage
72V
Nominal Capacity
60Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
83.95V
Charging Current
Standard 0.5C (30A), maximum support 60A
Instant Discharge Current
150A
Discharge Cut-off Voltage
64.4V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, firm and impact-resistant
Communication
RS485 communication interface
Application Fields
High-power electric motorcycles, electric motorcycles, three-wheel electric vehicles, low-speed engineering vehicles
