Outdoor Lithium Batteries

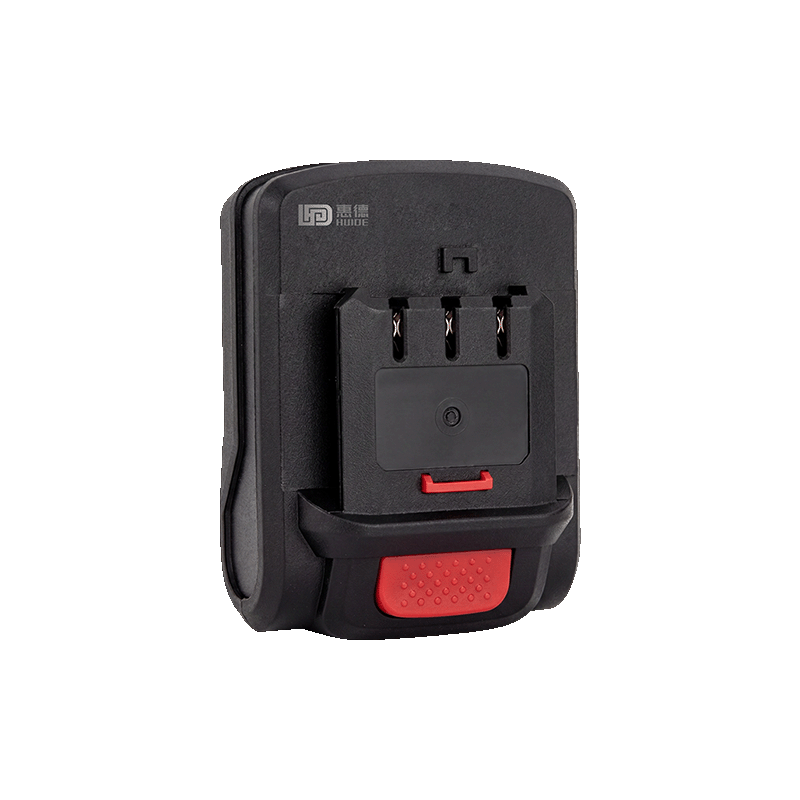

Flat-push Power Tool Lithium Battery (3.7V3000mAh)

Adopt 18650 power cells, high rate discharge, strong explosive power;

Built-in BMS multi-protection board, with overcharge, overdischarge, overcurrent, short circuit and temperature protection;

Push-latch structure, easy disassembly and assembly, compatible with multiple 12V lithium electric drills;

Impact-resistant flame-retardant shell, suitable for harsh working conditions on construction sites;

Low self-discharge, long cycle life, support frequent charging and discharging;

Product Certification

Product Specifications

Product No.
Hd-DD-12V-001
Battery Specification
3.7V / 3S1P / 12V3000mAh
Product Dimension
110mm × 75mm × 42mm
Battery Weight
Approx. 330g
Nominal Voltage
12V
Nominal Capacity
3000mAh
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
12.6V
Charging Current
Standard 0.5C (1.5A), maximum support 2A
Instant Discharge Current
20A
Discharge Cut-off Voltage
9.0V
Temperature Protection
BMS built-in NTC temperature control; high temperature protection ≥60℃, low temperature protection ≤-10℃
Battery Housing
ABS flame-retardant engineering plastic, drop resistant and wear resistant
Communication
No communication, pure power terminal output
Application Fields
Lithium electric drill, electric screwdriver, small rechargeable power tools, small garden power tools
