Outdoor Lithium Batteries

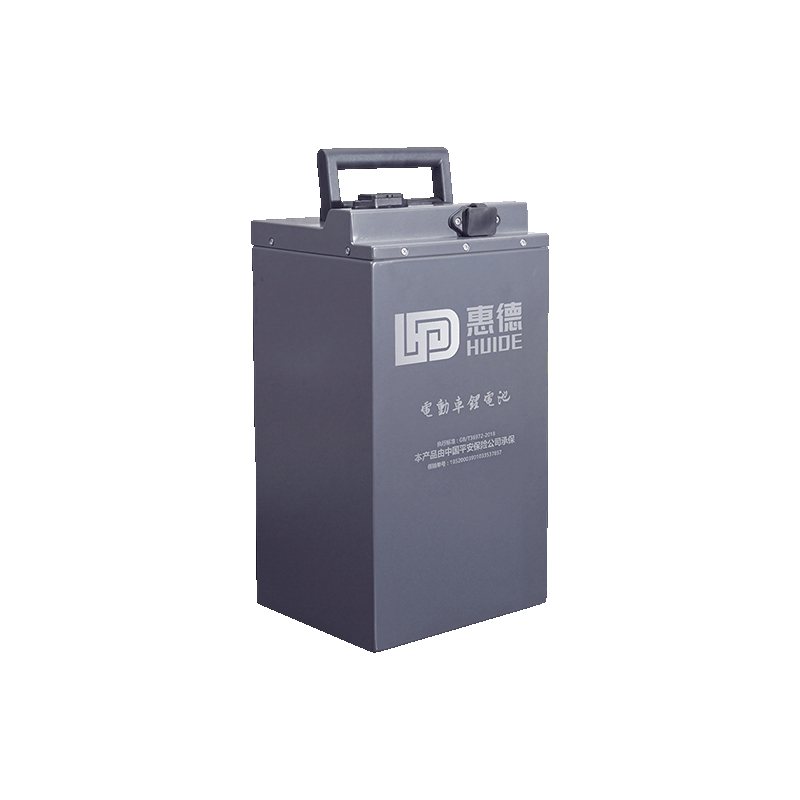

Electric Two-wheeler Lithium Battery (72V40Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

Integrated hand-held structure, easy disassembly and assembly, convenient for handling;

Sheet metal sprayed plastic housing, firm and pressure-resistant, dust-proof and rust-proof;

Support communication output, compatible with electric motorcycle controller;

Product Certification

Product Specifications

Product No.
Hd-DD-72V-001
Battery Specification
26700 / 3.2V / 23S8P / 72V40Ah
Product Dimension
220mm × 170mm × 380mm
Battery Weight
Approx. 24kg
Nominal Voltage
72V
Nominal Capacity
40Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
83.95V
Charging Current
Standard 0.5C (20A), maximum support 40A
Instant Discharge Current
100A
Discharge Cut-off Voltage
64.4V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, firm and impact-resistant
Communication
RS485 communication interface
Application Fields
Electric motorcycles, high-power two-wheel electric vehicles, low-speed vehicles
