Outdoor Lithium Batteries

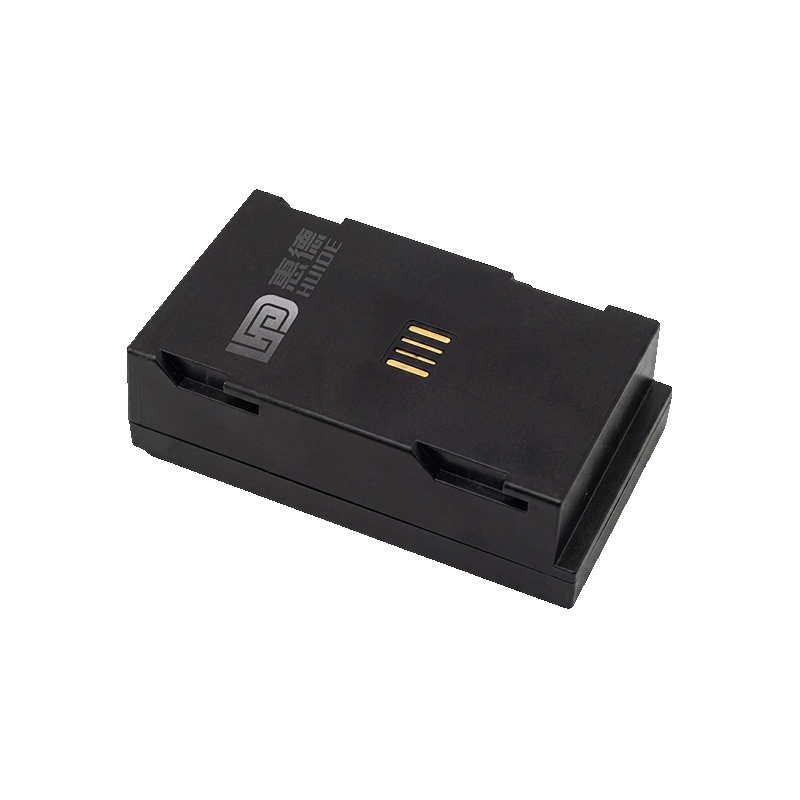

Plug-in Buckle Type Lithium Battery (7.4V3400mAh)

Soft pack polymer cells, high energy density, housing is customized snap plastic case;

Built-in PCM protection board, with overcharge, overdischarge, overcurrent and short circuit protection;

Gold-plated spring contact output, plug-in installation, easy to assemble and disassemble;

Housing with positioning snaps, foolproof design, suitable for the battery compartment of corresponding equipment;

Built-in NTC temperature detection to ensure equipment safety;

Product Certification

Product Specifications

Product No.
Hd-ZN-7.4-001
Battery Specification
Polymer, 7.4V 3400mAh, 2S1P
Product Dimension
115mm × 70mm × 22mm
Battery Weight
Approx. 145g
Nominal Voltage
7.4V
Nominal Capacity
3400mAh
Charging Temperature
0℃ ~ +55℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
8.4V
Charging Current
Standard 0.2C (0.68A), Max 0.5C (1.7A)
Instant Discharge Current
3.4A
Discharge Cut-off Voltage
6V
Temperature Protection
PCM with built-in NTC; high temperature protection ≥60℃, low temperature protection ≤-20℃
Battery Housing
Flame-retardant ABS plastic housing
Communication
None
Application Fields
Portable detectors, industrial handheld devices, cameras, surveying instruments, portable medical equipment
