Energy Storage Lithium Batteries

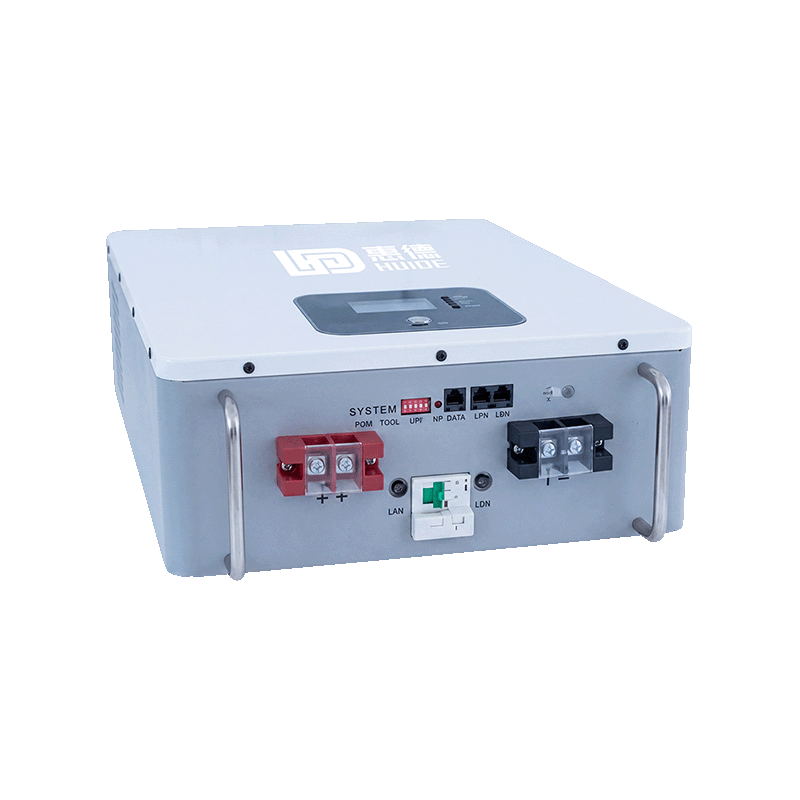

Wall-mounted Energy Storage Lithium Battery (51.2V100Ah)

Supports CAN/RS485 communication and multi-unit parallel connection;

Dual-pole high-power terminals for continuous high-current output;

BMS with LCD display, equipped with overcharge, overdischarge, overcurrent, short circuit, high and low temperature protection;

Lithium iron phosphate cells, safe and durable, cycle life>3000 times;

Sheet metal cabinet, wall-mounted installation to save site space;

Product Certification

Product Specifications

Product No.
Hd-CN-51.2-001
Battery Specification
3.2V / 16S1P / 51.2V100Ah
Product Dimension
Length 563mm × Width 400mm × Height 165mm
Battery Weight
48kg
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Charging Temperature
0~45℃
Discharging Temperature
-20~55℃
Charging Voltage
58.4V
Charging Current
20A (0.2C), max 50A (0.5C)
Instant Discharge Current
100A (continuous), peak 150A (3~5s)
Discharge Cut-off Voltage
44.8V
Temperature Protection
Charge and discharge cut-off at 60°C; alarm at 50°C
Battery Housing
Cold-rolled steel sheet metal, grey-white electrostatic powder coating, double-sided stainless steel handles
Communication
RJ45 interface, supports RS485/CAN, can report SOC, cell voltage, temperature and fault codes, supports multi-unit parallel connection
Application Fields
Residential photovoltaic energy storage, commercial and industrial backup power, off-grid power supply systems, UPS standby power supply
