Energy Storage Lithium Batteries

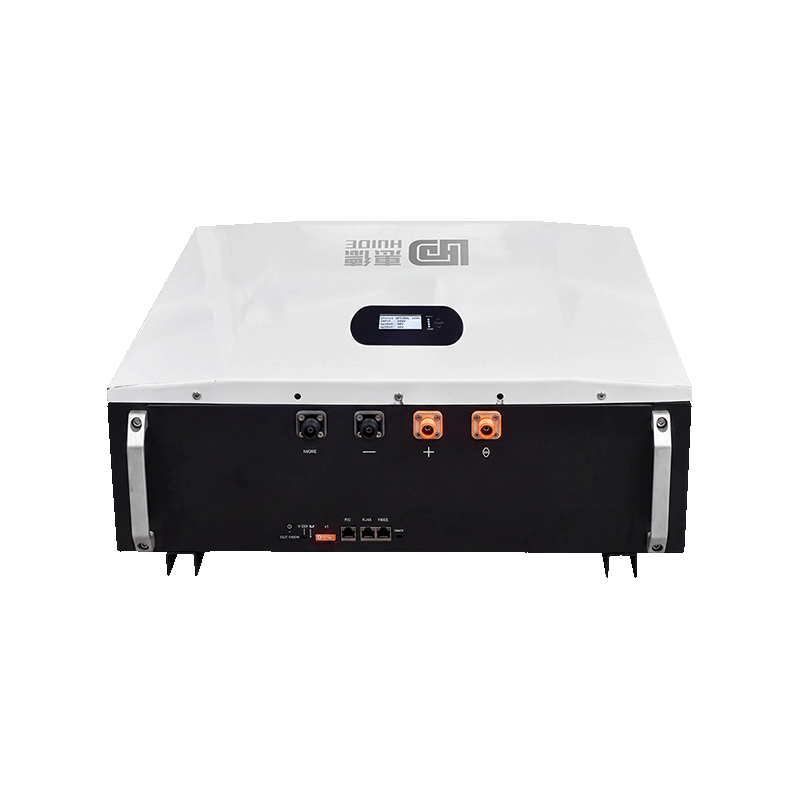

Wall-mounted Energy Storage Lithium Battery (51.2V200Ah)

Supports CAN/RS485 communication, can connect to host computer, supports multi-unit parallel expansion;

High-current terminal blocks with stable output, suitable for continuous discharge of energy storage;

Built-in BMS passive equalization, equipped with overcharge, overdischarge, overcurrent, short circuit, high and low temperature protection;

Lithium iron phosphate cells, safe and durable, cycle life>3000 times;

The cabinet has good protection performance, wall-mounted installation to save site space;

Product Certification

Product Specifications

Product No.
Hd-CN-51.2-002
Battery Specification
3.2V / 16S2P / 51.2V200Ah
Product Dimension
Length 600mm × Width 430mm × Height 210mm
Battery Weight
78kg
Nominal Voltage
51.2V
Nominal Capacity
200Ah
Charging Temperature
0~45℃
Discharging Temperature
-20~55℃
Charging Voltage
58.4V
Charging Current
40A (0.2C), max 100A (0.5C)
Instant Discharge Current
Continuous 200A, peak 300A (3~5s)
Discharge Cut-off Voltage
44.8V
Temperature Protection
Charge and discharge cut-off at 60°C; alarm at 50°C
Battery Housing
Cold-rolled steel sheet metal, black-white electrostatic powder coating, double-sided stainless steel handles, bottom support feet
Communication
RJ45 interface, supports RS485/CAN, can report SOC, cell voltage, temperature and fault codes, supports multi-unit parallel connection
Application Fields
Residential photovoltaic energy storage, commercial and industrial backup power, off-grid power supply systems, UPS standby power supply
