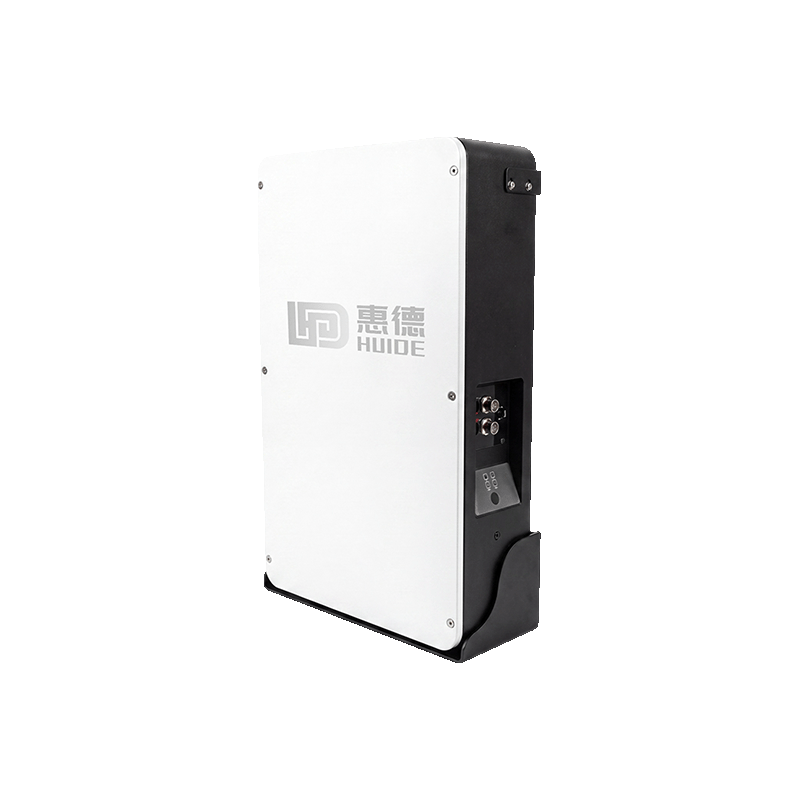

Wall-mounted Energy Storage Lithium Battery (51.2V100Ah)

Supports CAN/RS485 communication, can connect to inverters and host computers, supports multi-unit parallel expansion;

High-current terminal blocks with stable conductivity, suitable for continuous charge and discharge of energy storage;

Built-in BMS passive equalization, complete protections including overcharge, overdischarge, overcurrent, short circuit, high and low temperature;

Lithium iron phosphate cells with high safety and long cycle life, supporting shallow charge and shallow discharge;

Ultra-thin vertical sheet metal housing, wall-mounted installation to save space, certifications such as UN38.3, IEC62619 available;

Product Certification

Product Specifications

Product No.
Hd-CN-51.2-003
Battery Specification
3.2V / 16S1P / 51.2V100Ah
Product Dimension
Length 520mm × Width 180mm × Height 720mm
Battery Weight
50kg
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Charging Temperature
0~45℃
Discharging Temperature
-20~55℃
Charging Voltage
58.4V
Charging Current
20A (0.2C), max 50A (0.5C)
Instant Discharge Current
Continuous 100A, peak 150A (3~5s)
Discharge Cut-off Voltage
44.8V
Temperature Protection
Charge and discharge cut-off at 60°C; alarm at 50°C
Battery Housing
Cold-rolled steel sheet metal, black-white electrostatic powder coating, integrated design of vertical wall-mounted bracket
Communication
RJ45 interface, supports RS485/CAN, can report SOC, cell voltage, temperature and fault codes, supports multi-unit parallel connection
Application Fields
Residential photovoltaic energy storage, household standby power, off-grid power supply systems, small UPS backup power supply
