Energy Storage Lithium Batteries

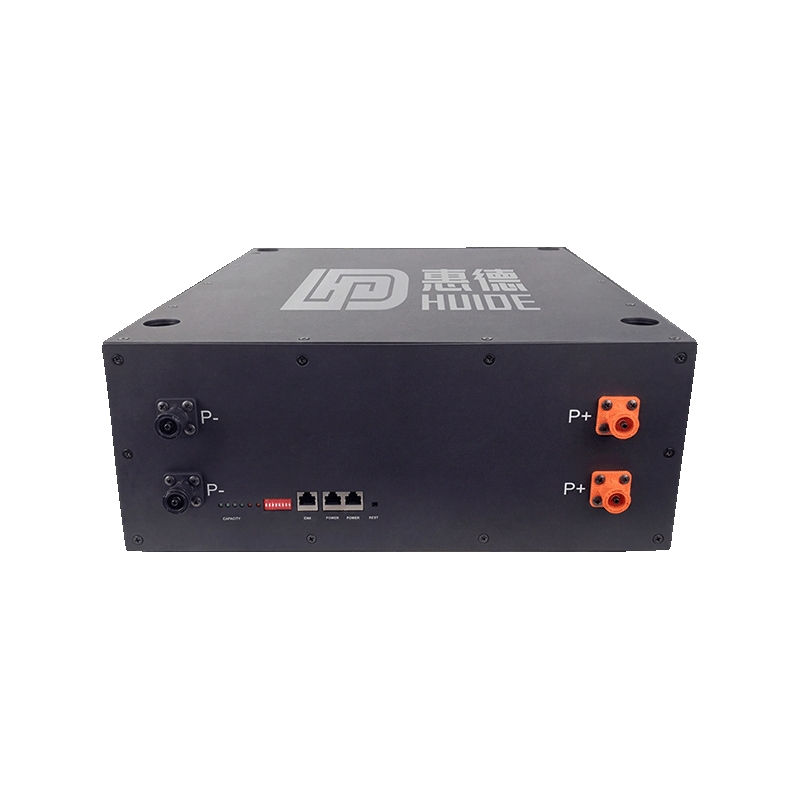

Rack Energy Storage Battery (51.2V100Ah)

Supports CAN/RS485 communication, can connect to host computer, supports multi-unit parallel expansion;

High-current aviation plug, convenient wiring, suitable for high-power output of energy storage;

Built-in BMS passive equalization, equipped with overcharge, overdischarge, overcurrent, short circuit, high and low temperature protection;

Lithium iron phosphate cells, safe and reliable, long cycle life;

Sheet metal cabinet with stable structure, suitable for cabinet installation;

Product Certification

Product Specifications

Product No.
Hd-CN-51.2-005
Battery Specification
3.2V / 16S1P / 51.2V100Ah
Product Dimension
Length 482mm × Width 440mm × Height 133mm
Battery Weight
53kg
Nominal Voltage
51.2V
Nominal Capacity
100Ah
Charging Temperature
0~45℃
Discharging Temperature
-20~55℃
Charging Voltage
58.4V
Charging Current
20A (0.2C), max 50A (0.5C)
Instant Discharge Current
100A (continuous), peak 150A (3~5s)
Discharge Cut-off Voltage
44.8V
Temperature Protection
Charge and discharge cut-off at 60°C; alarm at 50°C
Battery Housing
Cold-rolled steel sheet metal, black electrostatic powder coating, integrated rack cabinet
Communication
RJ45 interface, supports RS485/CAN, can report SOC, cell voltage, temperature and fault codes, supports multi-unit parallel connection
Application Fields
Commercial and industrial photovoltaic energy storage, backup UPS power supply, off-grid power supply systems, data center standby power supply
