Industrial Lithium Batteries

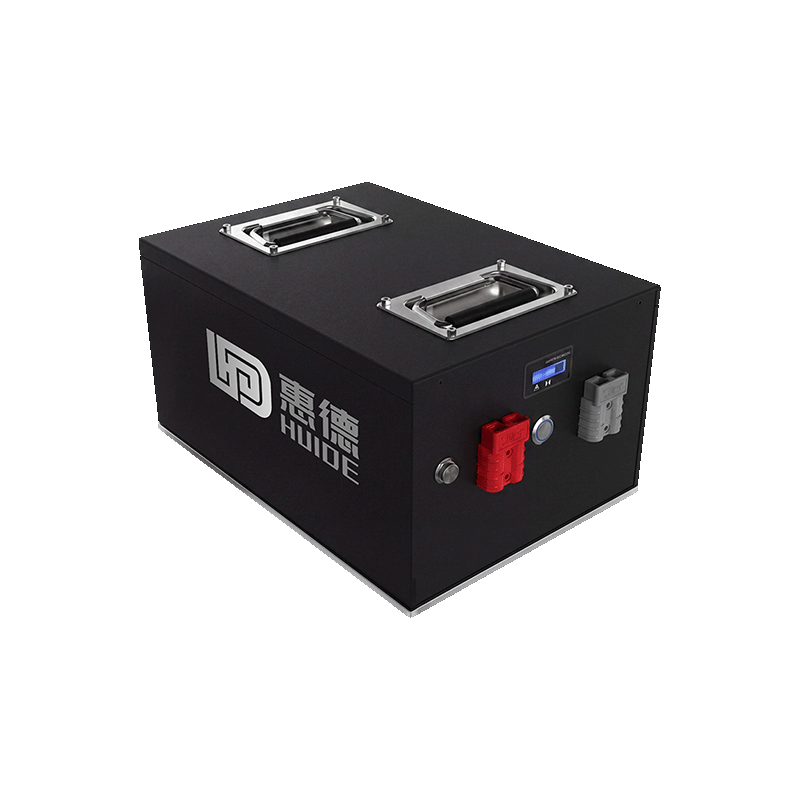

Robot Power Lithium Battery (48V80Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

Embedded metal handles, dual high-current connectors, convenient for battery replacement;

With power display screen, battery status can be monitored in real time;

Sheet metal sprayed plastic housing, firm and pressure-resistant, dust-proof and rust-proof;

Product Certification

Product Specifications

Product No.
Hd-AGV-48-002
Battery Specification
26700, 3.2V / 15S16P / 48V80Ah
Product Dimension
380mm × 280mm × 200mm
Battery Weight
Approx. 42kg
Nominal Voltage
48V
Nominal Capacity
80Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
54.75V
Charging Current
Standard 0.5C (40A), maximum support 80A
Instant Discharge Current
160A
Discharge Cut-off Voltage
42V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, firm and impact-resistant
Communication
RS485 communication interface
Application Fields
AGV handling robots, industrial battery swapping equipment, low-speed engineering vehicles, energy storage equipment
