Industrial Lithium Batteries

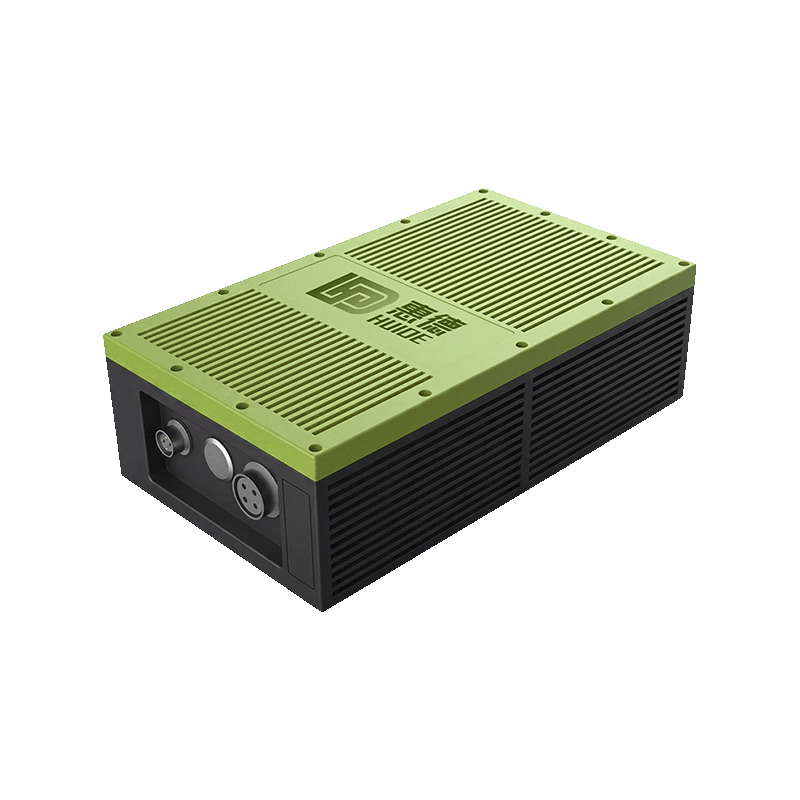

Under-carry AGV Lithium Battery (24V32Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

Aluminum alloy fin housing with excellent heat dissipation performance;

Aviation plug interface, reliable connection and good protection;

Ultra-thin and compact structure, convenient for equipment integrated installation;

Product Certification

Product Specifications

Product No.
Hd-AGV-24-001
Battery Specification
21700, 3.2V / 8S8P / 24V32Ah
Product Dimension
300mm × 160mm × 80mm
Battery Weight
Approx. 10.5kg
Nominal Voltage
24V
Nominal Capacity
32Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
29.2V
Charging Current
Standard 0.5C (16A), maximum support 32A
Instant Discharge Current
64A
Discharge Cut-off Voltage
22.4V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Aluminum alloy heat dissipation housing with heat dissipation ribs, impact-resistant
Communication
RS485 communication interface
Application Fields
Small latent AGV, inspection robots, automated trolleys
