Industrial Lithium Batteries

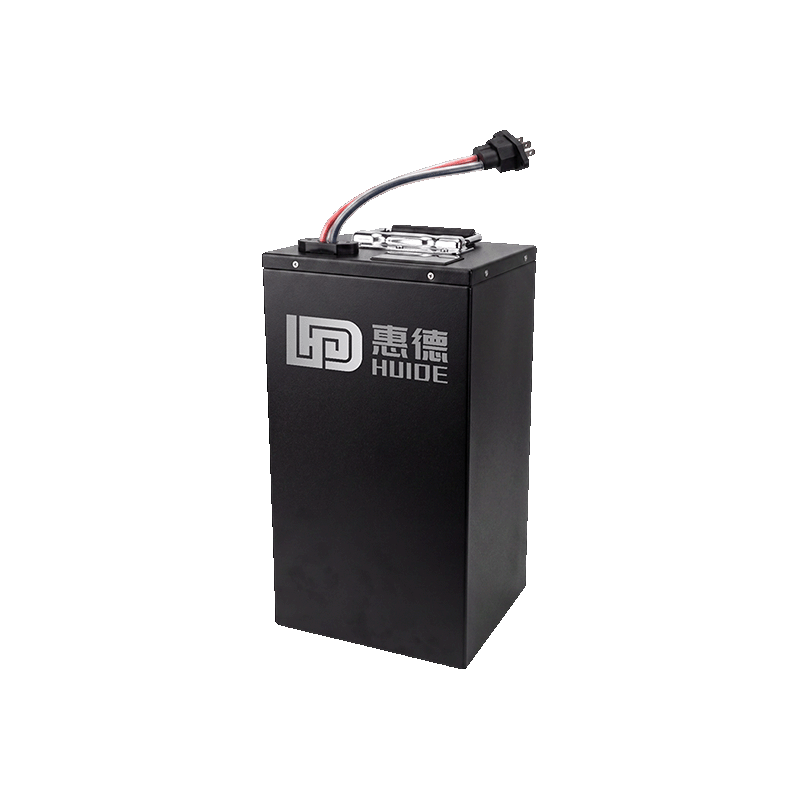

Vertical Narrow Lithium Battery (48V40Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

Vertical narrow cabinet, single top handle, suitable for narrow and long cabin of equipment;

High-current connector, easy to plug and unplug, supports quick battery replacement;

Sheet metal sprayed plastic cabinet, anti-vibration and impact-resistant, dust-proof and rust-proof;

Product Certification

Product Specifications

Product No.
Hd-AGV-48-005
Battery Specification
26700, 3.2V / 15S8P / 48V40Ah
Product Dimension
360mm × 180mm × 160mm
Battery Weight
Approx. 26kg
Nominal Voltage
48V
Nominal Capacity
40Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
54.75V
Charging Current
Standard 0.5C (20A), maximum support 40A
Instant Discharge Current
80A
Discharge Cut-off Voltage
42V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, impact resistance
Communication
RS485 communication interface
Application Fields
Latent AGV, warehouse handling robots, automated warehouse equipment, industrial backup power supply
