Explosion-proof Lithium Batteries

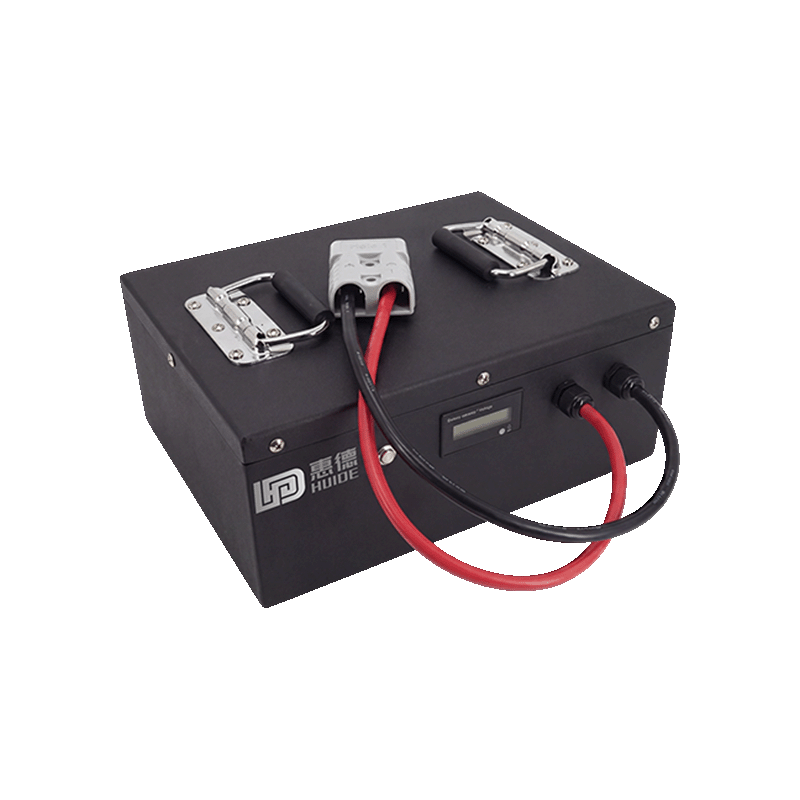

AGV Power Lithium Battery (48V100Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

Dual-handle design, equipped with Anderson high-current connector for easy disassembly and assembly;

Built-in digital display screen to check voltage and remaining power in real time;

Sheet metal sprayed plastic housing, firm and pressure-resistant, dust-proof and rust-proof;

Product Certification

Product Specifications

Product No.
Hd-AGV-48-001
Battery Specification
26700, 3.2V / 15S20P / 48V100Ah
Product Dimension
380mm × 260mm × 180mm
Battery Weight
Approx. 46kg
Nominal Voltage
48V
Nominal Capacity
100Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
54.75V
Charging Current
Standard 0.5C (50A), maximum support 100A
Instant Discharge Current
200A
Discharge Cut-off Voltage
42V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, firm and impact-resistant
Communication
RS485 communication interface
Application Fields
AGV carts, outdoor energy storage power supplies, low-speed equipment, photovoltaic energy storage
