Explosion-proof Lithium Batteries

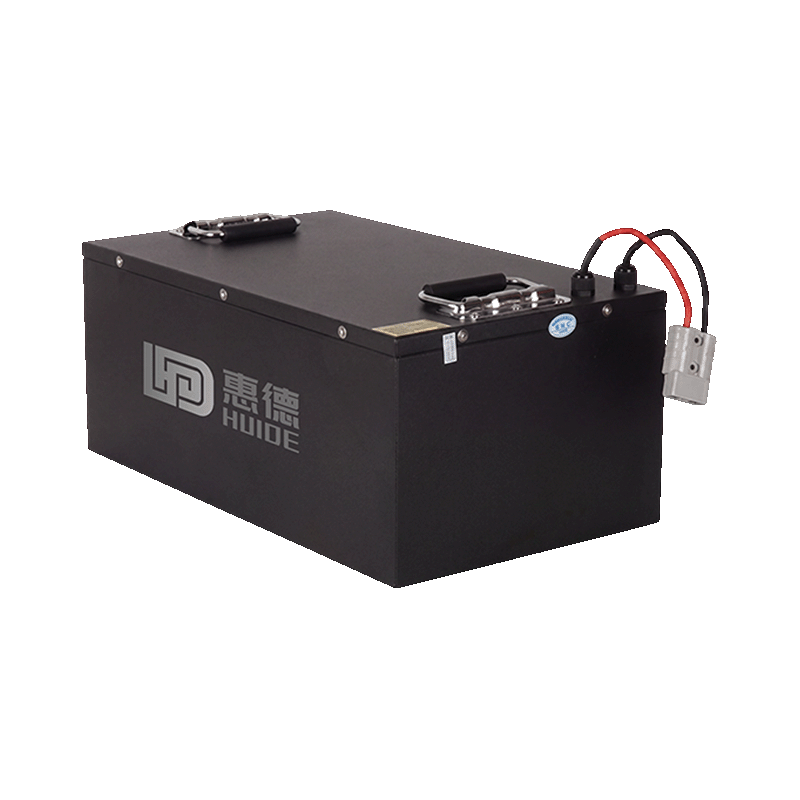

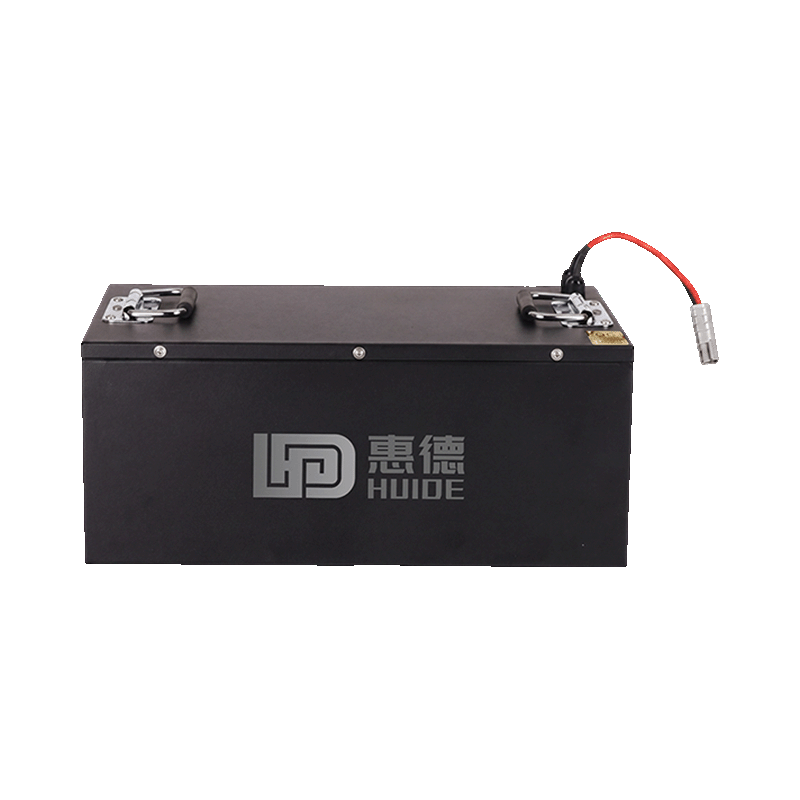

Light Tractor Lithium Battery (48V60Ah)

Cylindrical lithium iron phosphate cell, anti-bump, can withstand frequent start-stop impact of tractors;

Power BMS, active equalization, multiple safety protections;

Thickened sheet metal cabinet, double folding handles, shock-resistant and durable;

High-power Anderson connector, support CAN/RS485 communication;

Product Certification

Product Specifications

Product No.
Hd-GY-48-003
Battery Specification
26700, 3.2V / 15S12P / 48V60Ah
Product Dimension
520mm × 230mm × 210mm
Battery Weight
Approx. 35kg
Nominal Voltage
48V
Nominal Capacity
60Ah
Charging Temperature
0℃ ~ +55℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
54.75V
Charging Current
Standard 0.5C (30A), max 1C (60A)
Instant Discharge Current
120A
Discharge Cut-off Voltage
37.5V
Temperature Protection
BMS multi-point NTC sampling; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, black plastic spraying
Communication
CAN、RS485 communication interface
Application Fields
Light-duty yard tractors, warehouse traction equipment, workshop material traction trolleys
