Medical Lithium Batteries

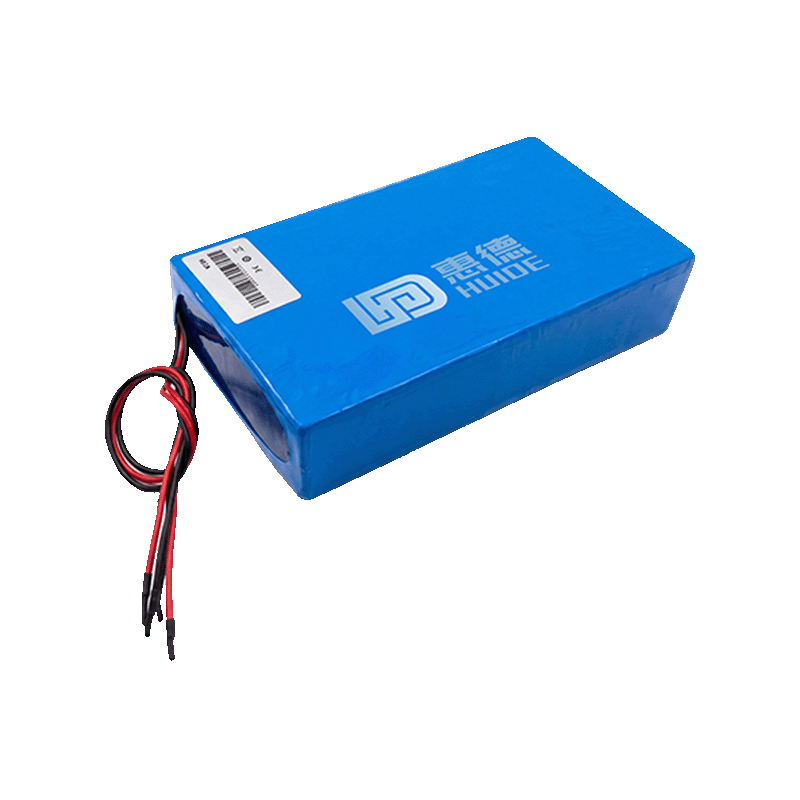

Portable Ventilator Lithium Battery (25.2V8Ah)

Large capacity and long endurance, double-group lead output, suitable for medical equipment power supply;

Built-in BMS, multiple safety protections, meet safety specifications of medical equipment;

Fully wrapped with blue PVC heat shrinkable film, dustproof and vibration resistant;

Low internal resistance with stable output, ensure continuous stable operation of equipment;

Product Certification

Product Specifications

Product No.
Hd-YL-25.2-002
Battery Specification
18650, 3.6V / 7S4P / 25.2V8Ah
Product Dimension
145mm × 68mm × 40mm
Battery Weight
Approx. 1420g
Nominal Voltage
25.2V
Nominal Capacity
8Ah
Charging Temperature
0℃ ~ +60℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
12.6V
Charging Current
Standard 0.5C (4A), max 1C (8A)
Instant Discharge Current
6A
Discharge Cut-off Voltage
19.6V
Temperature Protection
BMS multi-point NTC sampling; high temperature protection ≥60℃, low temperature protection ≤0℃
Battery Housing
Blue PVC heat shrinkable film packaging
Communication
None
Application Fields
Mobile medical equipment, portable medical monitoring instruments, emergency supporting power supply equipment
