Medical Lithium Batteries

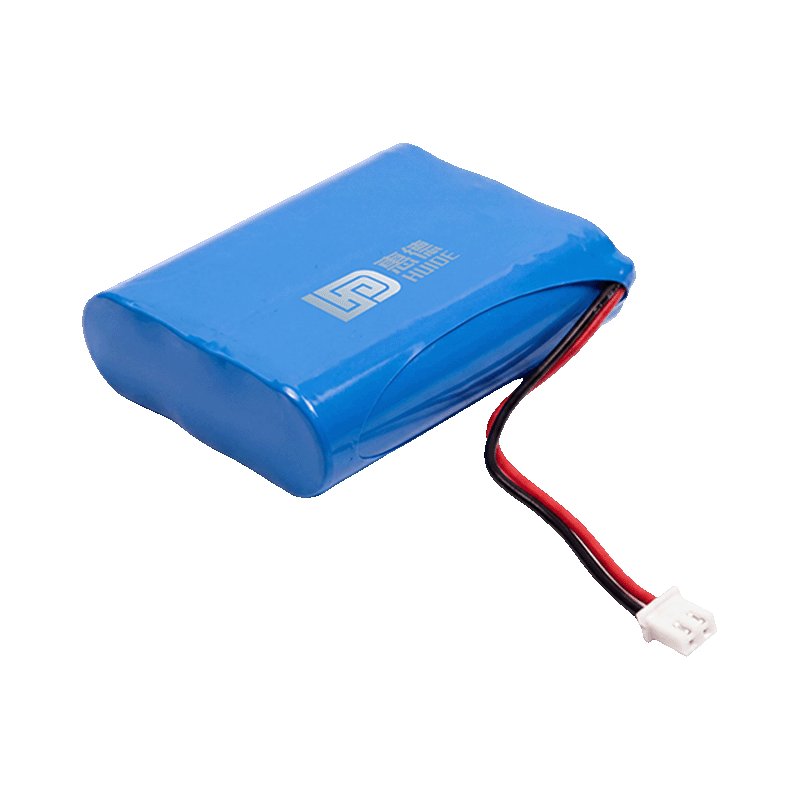

Testing and Analysis Instrument Lithium Battery (11.1V4Ah)

Small size, built-in standard connectors, convenient for assembly;

Built-in BMS, multiple safety protections, meet the safety requirements of medical equipment;

Insulation packaging with blue PVC heat shrinkable film, vibration resistant and stable;

Low internal resistance with stable output, meet the continuous power supply of medical equipment;

Product Certification

Product Specifications

Product No.
Hd-YL-11.1-001
Battery Specification
18650, 3.6V / 3S2P / 11.1V4Ah
Product Dimension
70mm × 56mm × 36mm
Battery Weight
Approx. 350g
Nominal Voltage
11.1V
Nominal Capacity
4Ah
Charging Temperature
0℃ ~ +60℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
12.6V
Charging Current
Standard 0.2C (0.8A), Max 0.5C (2A)
Instant Discharge Current
3A
Discharge Cut-off Voltage
8.4V
Temperature Protection
BMS multi-point NTC sampling; high temperature protection ≥60℃, low temperature protection ≤0℃
Battery Housing
Blue PVC heat shrinkable film packaging
Communication
None
Application Fields
Portable medical monitoring equipment, mobile testing instruments, portable medical supporting equipment
