Military Lithium Batteries

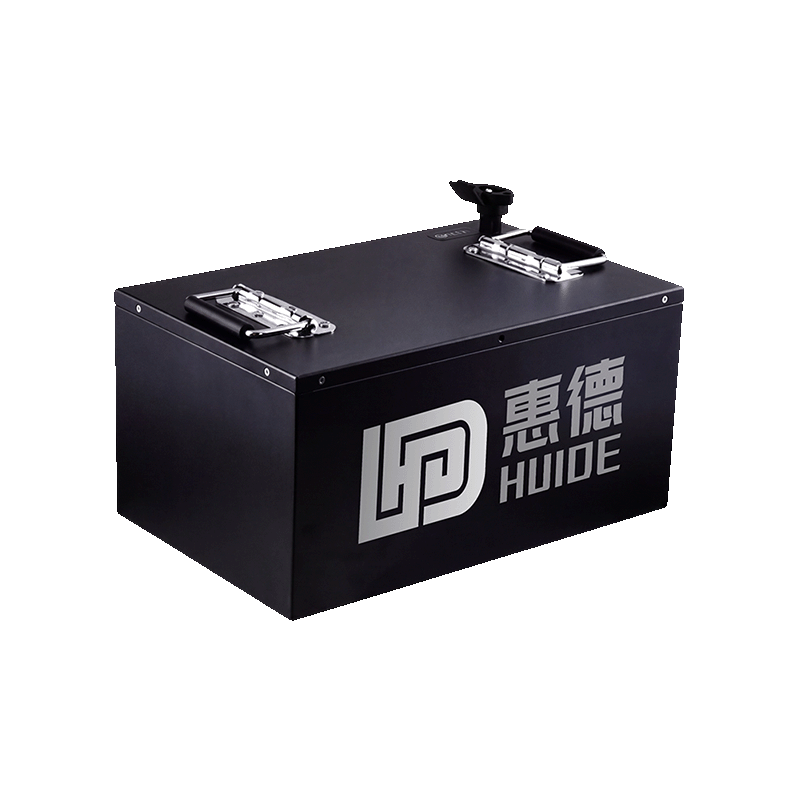

Automotive-Grade Robot Lithium Battery (48V60Ah)

Cylindrical lithium iron phosphate cells, safe and stable with long cycle life;

Intelligent BMS management system, multiple safety protections with active equalization;

Bimetallic folding handle, convenient for disassembly, assembly and battery replacement;

Sheet metal sprayed plastic cabinet, firm structure, resistant to vibration and impact;

Reserved communication interface, compatible with AGV control system;

Product Certification

Product Specifications

Product No.
Hd-AGV-48-004
Battery Specification
26700, 3.2V / 15S12P / 48V60Ah
Product Dimension
380mm × 260mm × 220mm
Battery Weight
Approx. 34kg
Nominal Voltage
48V
Nominal Capacity
60Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +55℃
Charging Voltage
54.75V
Charging Current
Standard 0.5C (30A), maximum support 60A
Instant Discharge Current
120A
Discharge Cut-off Voltage
42V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥55℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, impact resistance
Communication
RS485 communication interface
Application Fields
AGV handling robots, warehouse logistics trolleys, industrial power exchange equipment, low-speed engineering vehicles
