Military Lithium Batteries

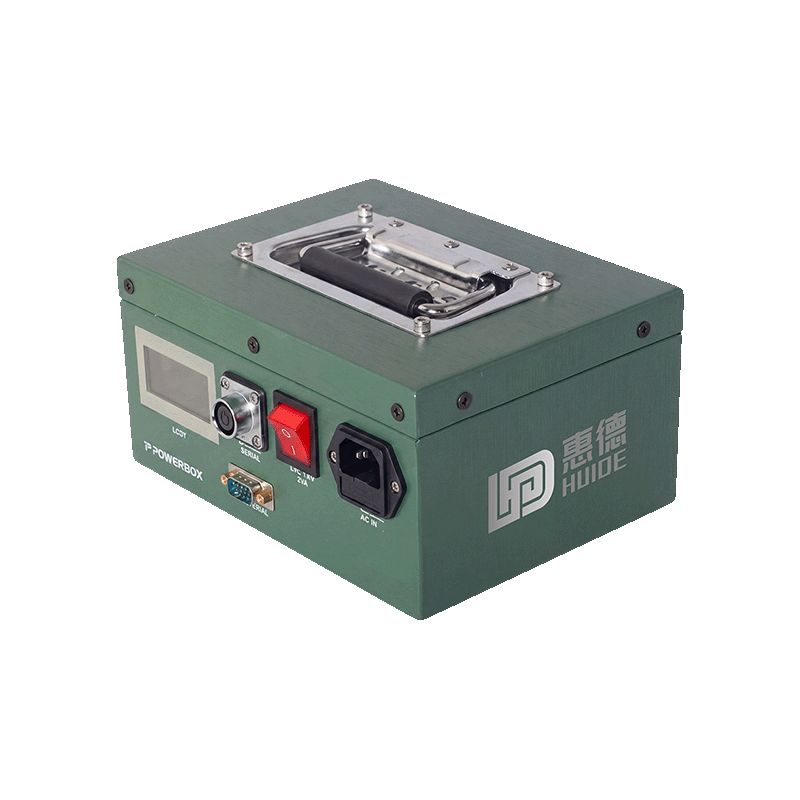

Portable Special Lithium Battery (24V50Ah)

Cylindrical lithium iron phosphate cells, excellent wide-temperature performance, anti-vibration and impact-resistant;

Intelligent BMS management system, supports active equalization, multiple safety protections;

Military green reinforced sheet metal cabinet, foldable metal top handle, convenient for field handling;

Integrated LCD display, AC charging input, equipped with RS232 and RS485 communication interfaces;

High-power output + main power switch, suitable for harsh field working conditions;

Product Certification

Product Specifications

Product No.
Hd-TZ-24-001
Battery Specification
26700, 3.2V / 8S10P / 24V50Ah
Product Dimension
320mm × 260mm × 180mm
Battery Weight
Approx. 32kg
Nominal Voltage
24V
Nominal Capacity
50Ah
Charging Temperature
-20℃ ~ +55℃
Discharging Temperature
-40℃ ~ +60℃
Charging Voltage
29.2V
Charging Current
Standard 0.5C (25A), maximum support 50A
Instant Discharge Current
100A
Discharge Cut-off Voltage
21V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥60℃, low temperature protection ≤-40℃
Battery Housing
Cold-rolled steel sheet metal housing, military green plastic spraying reinforcement, shockproof and impact-resistant
Communication
RS232、RS485 communication interface
Application Fields
Field survey equipment, special portable equipment, emergency disaster relief power supply, special robots, power supply for outdoor engineering instruments
