Wide Temperature Lithium Batteries

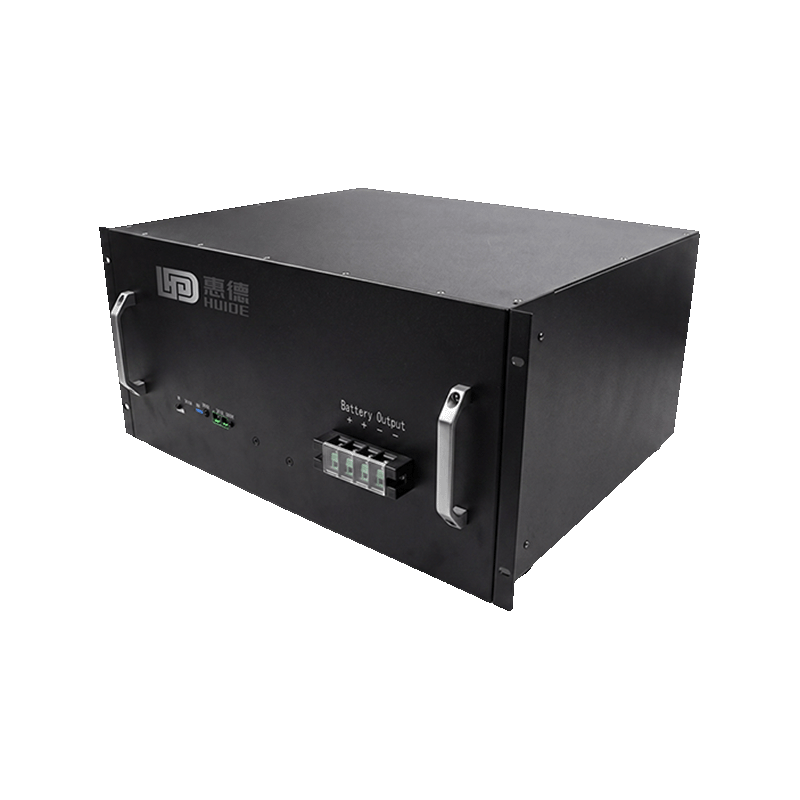

4U Rack-mounted Lithium Battery (48V100Ah)

26700 cylindrical lithium iron phosphate cell, long cycle life, safe and reliable;

Intelligent BMS management system with active equalization, multiple protections;

Standard 4U rack cabinet, double-sided metal handles, convenient for cabinet installation and pulling;

High-power terminal output, complete communication interfaces;

Cold rolled steel shell, sturdy structure, vibration resistant, suitable for long-term operation in computer room;

Product Certification

Product Specifications

Product No.
Hd-CN-48-007
Battery Specification
26700, 3.2V / 15S20P / 48V100Ah
Product Dimension
442mm × 400mm × 177mm (Standard 4U rack)
Battery Weight
Approx. 58kg
Nominal Voltage
48V
Nominal Capacity
100Ah
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
54.75V
Charging Current
Standard 0.5C (50A), maximum support 100A
Instant Discharge Current
200A
Discharge Cut-off Voltage
42V
Temperature Protection
BMS multi-point NTC temperature control; high temperature protection ≥60℃, low temperature protection ≤0℃
Battery Housing
Cold-rolled steel sheet metal housing, plastic spraying for rust prevention, impact resistance
Communication
RS485 / CAN Communication interface
Application Fields
Backup power supply for server rooms, energy storage for communication base stations, industrial and commercial energy storage, UPS uninterruptible power supply
