Digital Lithium Batteries

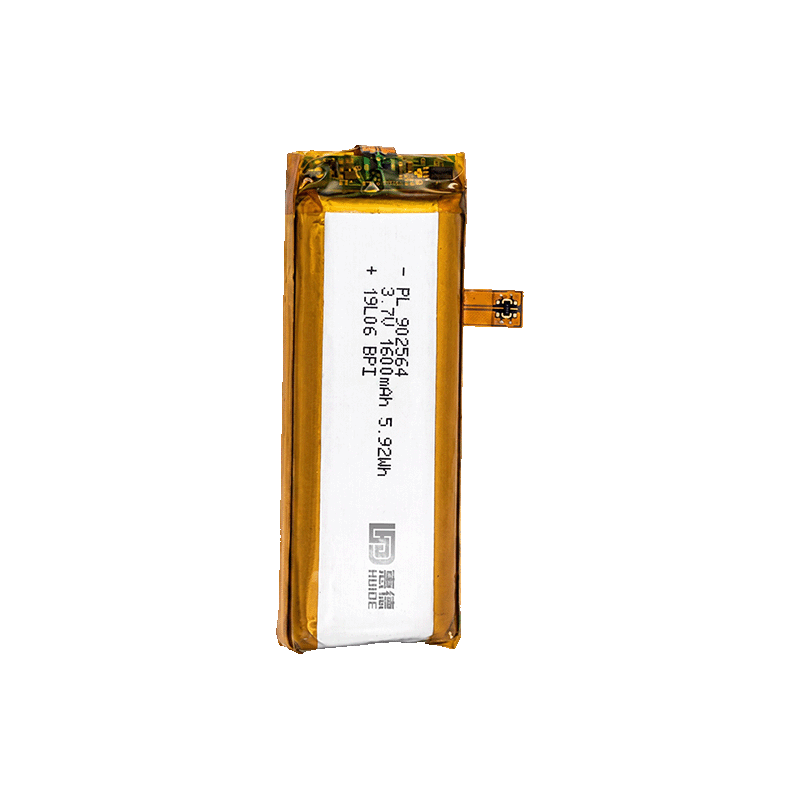

Pouch Polymer Lithium Battery (3.7V1600mAh)

Soft pack polymer cells, thin long strip structure, customizable wire outlet position;

Built-in PCM protection board, with overcharge, overdischarge, overcurrent and short circuit protection;

High energy density, small, thin and light volume;

Aluminum plastic film packaging, suitable for small consumer, wearable and portable equipment;

Leads with FPC connector, convenient for SMT welding and assembly;

Product Certification

Product Specifications

Product No.
Hd-JHW-3.7-001
Battery Specification
PL902564, 3.7V 1600mAh, 5.92Wh
Product Dimension
90mm × 25mm × 6.4mm
Battery Weight
Approx. 14g
Nominal Voltage
3.7V
Nominal Capacity
1600mAh
Charging Temperature
0℃ ~ +45℃
Discharging Temperature
-20℃ ~ +60℃
Charging Voltage
4.2V
Charging Current
Standard 0.2C (0.32A), maximum support 0.5C (0.8A)
Instant Discharge Current
1.6A
Discharge Cut-off Voltage
3V
Temperature Protection
PCM built-in NTC temperature detection; high temperature protection ≥60℃, low temperature protection ≤-20℃
Battery Housing
Aluminum plastic film soft package packaging
Communication
None
Application Fields
Smart wearable devices, portable detectors, Bluetooth headset charging cases, small handheld instruments, IoT terminals, electronic digital products
